Using Drones to Map Vegetation Along Shorelines With Correlator3D


Property owners on lakes are in constant battle with vegetation encroachment along their shorelines. If vegetation is left unmanaged, access to docks can become blocked and create both maintenance issues and loss of property value. Austin Scheib, ASPRS Certified Drone Pilot with Hannover Design Services, uses drones to map and monitor vegetation for landowners so that they can make informed decisions on mitigation methods.

Using Drones to Map Vegetation Along Shorelines With Correlator3D
INDUSTRY

Surveying


COUNTRY

United States


USE CASE

Drones used to capture vegetation encroachment to mitigate loss of property value


CHALLENGES
  • Flight planning
  • Launch locations
  • Sun angle and glare
  • DEM generation over water



BENEFITS
  • Operator on-site to monitor conditions
  • Rapid acquisition
  • Flat surfaces over water
  • Optimized mosaic quality
Hanover Design Services
Austin Scheib

“Being able to mobilize and capture imagery on-site allows us to monitor conditions as the flight occurs, and adjust flight plans as necessary. Unlike most mapping projects, the sun and its glare can really affect our ability to see the vegetation we are looking for. Correlator3D allows us to process and edit our orthomosaics to ensure optimal results.”

AUSTIN SCHEIB

SURVEYOR FOR HANOVER DESIGN SERVICES

Using Drones to Map Vegetation Along Shorelines With Correlator3D

WORKFLOW

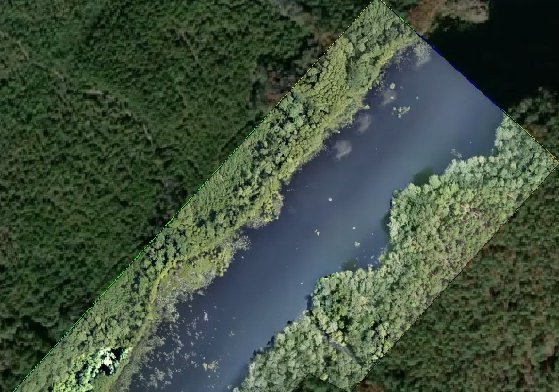

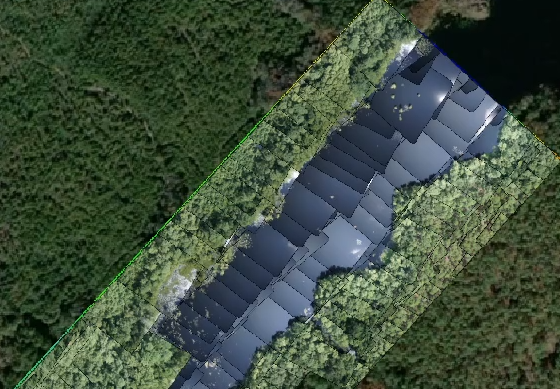

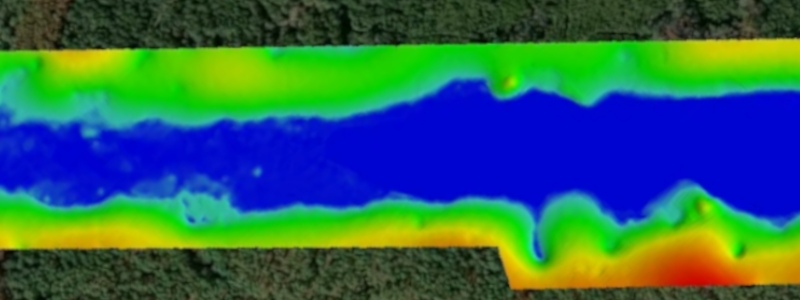

High resolution imagery was acquired with consideration for the sun’s position overhead. With water, the sun’s reflection can cause problems in processing so it must be mitigated. A high amount of overlap is a good way to do this. A DEM was then generated with Correlator3D and edited (flattened) over the water to ensure the best orthos. Once the orthos were generated and the mosaicking was completed, those with reflections from the sun hindering mosaic color balancing were removed. Reprocessing the mosaic without these allowed for a well-defined and color balanced image of the lake and its vegetation.

DELIVERABLES

Color-balanced orthomosaic.



BENEFITS

Correlator3D allows full control over the photogrammetric mapping process. When working over water, there are editing options for the DEM and/or the ability to import a previously flattened surface. Additionally, orthos can be added or removed from the overall project to ensure the best color balance possible.



ABOUT HANOVER DESIGN SERVICES

Established in 1986 by Greg Wayne, Hanover Design Services offers complete land surveying solutions for the greater Wilmington NC area. Austin Scheib operates the drone services for Hanover Design and is also a part of the survey team.
