Leveraging Correlator3D for Practical Photogrammetry in Engineering Projects
Settimio Consulting Services, a geospatial consulting firm specializing in infrastructure and engineering solutions, utilizes SimActive’s Correlator3D to deliver accurate photogrammetric data for road planning and design projects. By integrating aerial imagery with LiDAR, they ensure high-precision measurements that support efficient engineering workflows. Correlator3D’s robust processing capabilities allow for seamless data handling, enabling Settimio to produce reliable outputs for critical decision-making in infrastructure development.
.png?width=800&height=623&name=Seattle%20Orthomosaic%20(1).png "Processing Large Photogrammetry Projects in Parallel with Correlator3D")
INDUSTRY
Engineering consulting
COUNTRY
United States
USE CASE
Photogrammetry for infrastructure planning and design accuracy
CHALLENGES
- Achieving sub-centimeter accuracy for engineering designs
- Integrating imagery and LiDAR data efficiently
- Planning optimal data collection for large-scale projects
- Ensuring data reliability for regulatory compliance
BENEFITS
- Streamlined processing for faster project turnaround
- Enhanced precision through combined data sources
- Reduced costs in fieldwork and analysis
- Improved collaboration in design and planning phases
“Correlator3D makes photogrammetry practical for engineering by delivering the accuracy we need for road planning, integrated seamlessly with LiDAR for superior results.”
KYLER WHITTENBERGER
PHOTOGRAMMETRY MANAGER, SETTIMIO CONSULTING SERVICES
WORKFLOW
Settimio Consulting Services begins by planning and capturing high-resolution imagery and LiDAR data over engineering sites. They import the datasets into Correlator3D for automated aerial triangulation and bundle adjustment to achieve precise georeferencing, and to register imagery with LiDAR. The software then generates dense point clouds and surface models by merging photogrammetric and LiDAR data, with quality checks ensuring reliability for design applications.
DELIVERABLES

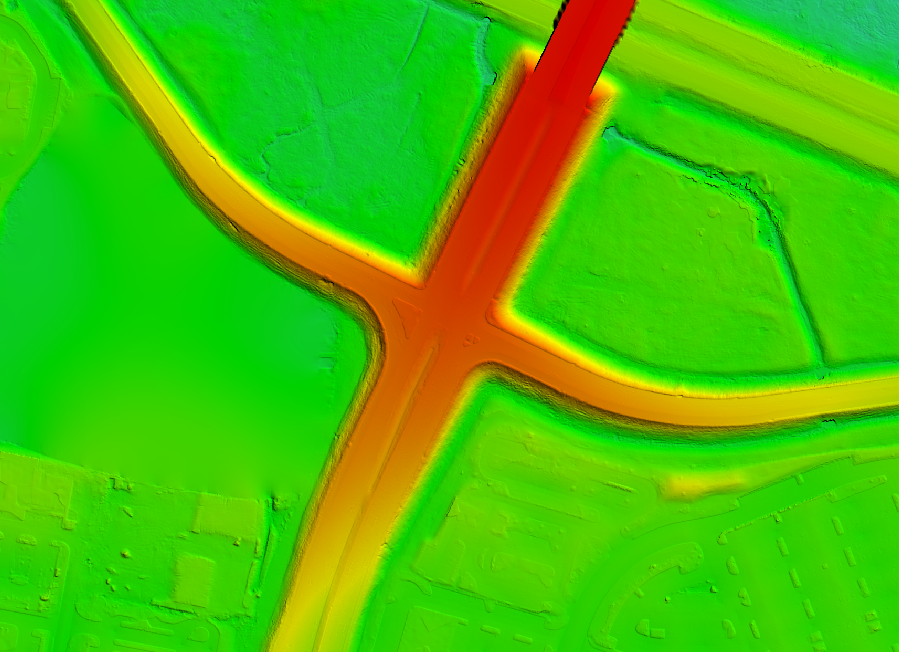

Dense point clouds, digital surface models (DSM), orthomosaics, integrated LiDAR-imagery hybrids, and accuracy reports for engineering design.
BENEFITS
Correlator3D empowers Settimio Consulting Services to make photogrammetry a practical tool for engineering, providing high-accuracy data that enhances project efficiency and precision in infrastructure workflows.
ABOUT SETTIMIO CONSULTING SERVICES
Settimio Consulting Services, Inc. (SCS) is a woman-owned, DBE-certified firm specializing in lidar, photogrammetry, GIS, land surveying, and remote sensing solutions. SCS was established in March of 2009 and has built a history of quality and performance with the completion of Federal, State, County and DOT projects. SCS’ vision is to provide cost-effective, innovative mapping services and products to Engineers, Surveyors, Scientists and GIS professionals. SCS, with strategic partners, offers full-service photogrammetry and remote sensing services. SCS has experience in using Photogrammetry and merging data with Fixed Wing, Rotary Wing and Mobile LIDAR with imagery technology for rapid accurate performance on projects. SCS has grown quickly performing on small and large-scale projects. SCS has the expertise to deliver DOT, GIS and Civil Site projects. For more information, visit www.scs-mapping.com.
